Cyclones

The Cyclones of Schuh Anlagentechnik are the result of numerous applications for the dust exhaust and material separation in different aerodynamic installations.

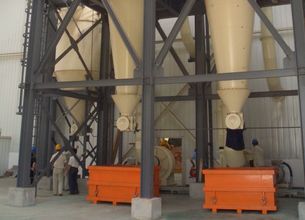

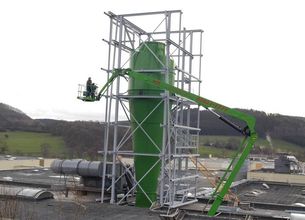

Construction and method of operation of the Cyclone mark a simple and maintenance-free system for the separation of material / dust and air. The cyclone consists essentially of the cylindrical upper section with tangential air inlet, the axially arranged immersion pipe as air outlet, the cone with the material discharge opening as well as the brackets for the support.


Application area

  • Upper miller
  • Lower miller
  • Chip extraction
  • Sawing
  • Material waste disposal for Roller leveler
